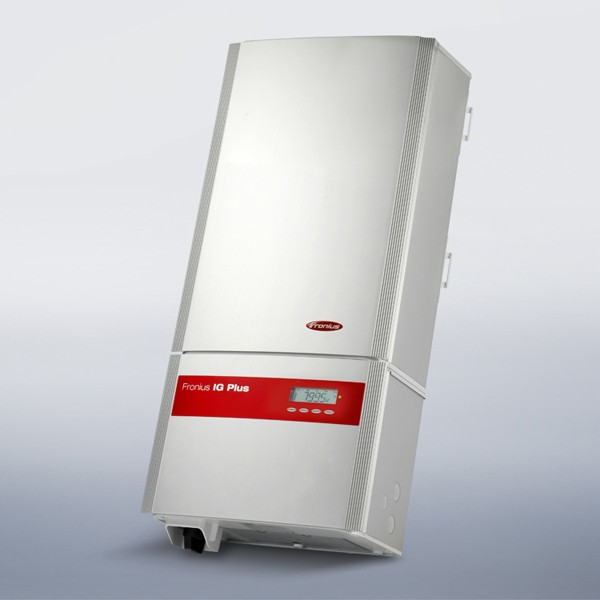

Fronius IG Plus Advanced Grid-Tie Inverter : 3,000W

Price: CAD $2,479.00

SKU: FRIGPLUS3000A

Product Categories:

Product Tags: , , , , , , , , , , , , , , ,

Product Page: https://www.modernoutpost.com/product/fronius-ig-plus-advanced-3000w/



Product Summary

The Fronius IG Plus Advanced 3,000W/240V, AFCI grid-tie inverter is a featured product of the Fronius Solar Electronics division. A full-featured string inverter available in 3 to 12 kilowatt sizes. Austrian quality & high reliability, backed with a 10-year warranty.

Product Description

The Fronius IG Plus Advanced is a featured product of the Fronius Solar Electronics division. A full-featured string inverter available in 3 to 12 kilowatt sizes. Austrian quality & high reliability, backed with a 10-year warranty.

Model : 3,000W/240V, AFCI

Why choose a Fronius Grid-Tie Inverter:

  • Austrian quality, high reliability, backed with a 10 year warranty
  • Multi-stage MPPT conversion for greater energy harvest in all light levels
  • Value pricing without compromising performance

The Fronius IG Plus Advanced is the first complete inverter lineup of the NEC 2011 compliant AFCI protected inverters in the United States. Power classes ranging from 3 to 12 kW in both single and true 3 phase applications with integrated Fronius MIX Technology and wide voltage windows are the perfect match for your system design.

Fronius IG Plus Features...
  • Grounding selectable on site.
    Decide on site what type of grounding is required as the Fronius IG Plus is field programmable for either positive or negative module grounding.
  • Designed for indoor and outdoor installations.
    All Fronius IG Plus inverters have a robust, well designed aluminum housing.  UV resistance and corrosion protection enable them to be used either indoors or outdoors.  Fronius is proud to be one of the only inverters tested and approved to operate at 122° F.
  • Integrated DC disconnect.
    No external DC disconnect installation or cabling is necessary.  The Fronius IG Plus comes complete with an approved, built-in, lockable and load breakable DC Disconnect.
  • Power plug system.
    The connection area and power stages are installed separately from each other. Very easy and extremely safe:  The connection area is attached to the wall as normal. Then the power module is simply plugged in.  The power plug connects both parts into one secure unit.  If service is required, the connector remains on the wall  maintaining all settings and configurations.
  • Field Programmable AC output voltage.
    The Fronius IG Plus inverter line from 3.0 to 11.4 kW is field programmable to 208, 240 or 277 volts (Fronius IG Plus 12.0 kW only availabale in 277 volts), eliminating the need to install different inverter models to accommodate three-phase installations.

Fronius IG Plus Specifications...

INPUT DATA 3.0-1 UNI 3.8-1 UNI 5.0-1 UNI 6.0-1 UNI 7.5-1 UNI
Recommended PV-Power (kWp) 2.50 - 3.45 3.20 - 4.40 4.25 - 5.75 5.10 - 6.90 6.35 - 8.60
Nominal Input Current 8.3 A 10.5 A 13.8 A 16.5 A 20.7 A
Max. Usable Input Current 14.0 A 17.8 A 23.4 A 28.1 A 35.1 A
MPPT - Voltage Range 230 - 500 V
DC Startup 260 V
Max. Input Voltage 600 V
Admissable Conductor Size (DC) No. 14 to 6 AWG. For larger wire, use Fronius connecting distributor.
Max. Current per DC Input Terminal 20 Amps. For higher input current, use Fronius connecting distributor.
OUTPUT DATA 3.0-1 UNI 3.8-1 UNI 5.0-1 UNI 6.0-1 UNI 7.5-1 UNI
Nominal Output Power 3,000 W 3,800 W 5,000 W 6,000 W 7,500 W
Max. Continuous Output Power 3,000 W 3,800 W 5,000 W 6,000 W 7,500 W
AC Output Voltage 208 / 240 / 277
Number of Phases 1
Admissable Conductor Size (AC) No. 14 - 4 AWG
Max. Continuous Utility Backfeed Current 0A
Nominal Output Frequency 60 Hz
Operating Frequency Range 59.3 - 60.5 Hz
Total Harmonic Distortion <3 %
Power Factor 0.85 - 1 ind. / cap.
GENERAL DATA 3.0-1 UNI 3.8-1 UNI 5.0-1 UNI 6.0-1 UNI 7.5-1 UNI
Max. Efficiency 96.2
Unit Dimensions (W x H xD) 17.1 x 26.5 x 9.9 in. 17.1 x 26.5 x 9.9 in. 17.1 x 38.1 x 9.9 in. 17.1 x 38.1 x 9.9 in. 17.1 x 38.1 x 9.9 in.
CEC Efficiency                      208V 95.0 % 95.0 % 95.5 % 95.5 % 95.0 %
                                                240 V 95.5 % 95.5 % 95.5 % 96.0 % 95.5 %
                                                277 V 96.0 % 96.0 % 96.0 % 96.0 % 96.0 %
Consumption in Standby (Night) < 1.5 W
Consumption During Operating 8 W 8 W 14 W 14 W 14 W
Cooling Controlled forced ventillation, variable speed fan.
Enclosure Type NEMA 3R
Power Stack Weight 31 lbs. (14 kg) 31 lbs. (14 kg) 57 lbs. (26 kg) 57 lbs. (26 kg) 57 lbs. (26 kg)
Wiring Compartment Weight 24 lbs. (11 kg)
Admissable Ambient Operating Temperature -13o F...+131o F (-25o C...+55o C)
Advanced Grid Features Active and reactive power control, low voltage ride-through
Compliance UL 1741-2010, IEEE 1547-2003, IEEE 1547.1, UL 1699B-2013, ANSI/IEEE C62.41, FCC Part 15 A & B, NEC Article 690, C22. 2
No. 107.1-01 (Sept. 2011) California Solar Initiative - Program Handbook - Appendix C: Inverter Integral 5% Meter Performance
Specification
EFFICIENCY 3.0-1 UNI 3.8-1 UNI 5.0-1 UNI 6.0-1 UNI 7.5-1 UNI
Operating AC Voltage Range  208 V 183 - 229 V (-12 / +10%)
                                                   240 V 211 - 269 V (-12 / +10%)
                                                   277 V 244 - 305 V (-12 / +10%)
Max. Continuous Output Current
208 V
14.4 A 18.3 A 24.0 A 28.8 A 36.1 A
                                240 V 12.5 A 15.8 A 20.8 A 25.0 A 31.3 A
                                277 V 10.8 A 13.7 A 18.1 A 21.7 A 27.1 A
PROTECTIVE EQUIPMENT 3.0-1 UNI 3.8-1 UNI 5.0-1 UNI 6.0-1 UNI 7.5-1 UNI
Ground Fault Protection Internal GFDI (Ground Fault Detector/Interrupter) in accordance with UL 1741-2010 and NEC Art. 690
DC Reverse Polarity Protection Internal Diode
Islanding Protection Internal; in accordance with UL 1741-2010, IEEE 1547-2003 and NEC
Over Temperature Protection Output power derating / active cooling
Arc-Fault Circui Protection Internal AFCI (Arc-Fault Circuit Interrupter); in accordance with UL 1699 Outline of Investigation for Photovoltaic (PV) DC Arc-Fault Circuit Protection (Issue Number 2, January 14, 2013)
The Fronius Advantage...

Arc Fault Circuit Interruption Integrated
The Fronius Arc Fault Circuit Interruption (AFCI) is the best of its kind in the industry. The technology makes each inverter NEC 2011 compliant and maintains some of the most civilized, integrated technology available today. Ensuring the utmost safety, AFCI shuts down the inverter in the event of an arc fault.
Fronius MIX Technology
The cleverly-devised combination of several power modules means Fronius inverters always achieve maximum yield, even when in the partial-load range. This is all down to the unique Fronius Master Inverter X-Change system (MIX), a development of the classic master/slave principle. How it works: all power modules are equal. The „master“ is allocated alternately, taking into account the operating hours worked. The result is that loads are applied evenly to individual power modules and the operating time decreases.
HF Transformer Switchover
Fronius transformer inverters use a high-frequency (HF) transformer. The automatic transformer switchover facility produces three efficiency peaks. The result: a constant level of efficiency across the entire input voltage range, resulting in higher yields. Other advantages of HF transformer technology are the compact, lightweight design, a high level of efficiency and safety as a result of the electrical isolation.
PC Board Replacement
The foundation of the unique PC board replacement is laid as we develop our inverters, as PC boards can only be replaced if the device has been designed accordingly. This enables our Fronius Service Partners to provide the fastest inverter servicing on the market.
WiFi Capability
Simple, user-friendly system monitoring is very important to Fronius. Made possible with a retrofitted Fronius Datamanager*, the Fronius IG Plus Advanced is capable of having a WiFi interface in the inverter itself. The inverter is then able to connect to the internet without any additional cabling and grants you the perfect overview of how the PV system is operating via Fronius Solar.web. *Fronius Datamanagers are sold seperately.
Smart Grid Ready
Fronius inverters are ready for the Smart Grid of tomorrow. The inverters are optimally equipped to meet the technical requirements of grids in the future. A series of smart functions, known as Advanced Grid Features, are built into the devices. These include a number of control functions for optimum feed-in of reactive power and effective power. These functions are designed to enable stable grid operation even when the PV system density is very high and to prevent unwanted interruptions to feed-in and associated yield losses. Fronius inverters therefore help to guarantee the yield of a PV system.

Product Attributes

  • Dimensions: 1 × 1 × 1 cm
  • Weight: 20 kg
