HU362RB & H362RB 600V Disconnects by Schneider Square D

Price: CAD $439.00 - CAD $449.00Price range: CAD $439.00 through CAD $449.00

Product Categories: Disconnects, Supply, Wiring & BOS

Product Tags: 600v, 600v disconnect, 60a 60a disconnect, ac, canada, dc, disconnect, h362rb, h362rb canada, hu362rb, hu362rb canada, safety switch, schneider, square-d, switch

Product Page: https://www.modernoutpost.com/product/hu362rb-h362rb-600v-disconnects-by-schneider-square-d/

Product Variants

• HU362RB & H362RB 600V Disconnects by Schneider Square D - HU362RB (Unfused) ()
• HU362RB & H362RB 600V Disconnects by Schneider Square D - H362RB (Fused) ()

Product Summary

These are the HU362RB & H362RB 600V Disconnects by Schneider Square D. Heavy duty, non fusible, or fuseable, 60A, 600 VAC/DC safety disconnect switches. A great choice when using ground-mounted solar arrays. Place this disconnect at the pole or ground mount for the local array disconnect.

Product Description

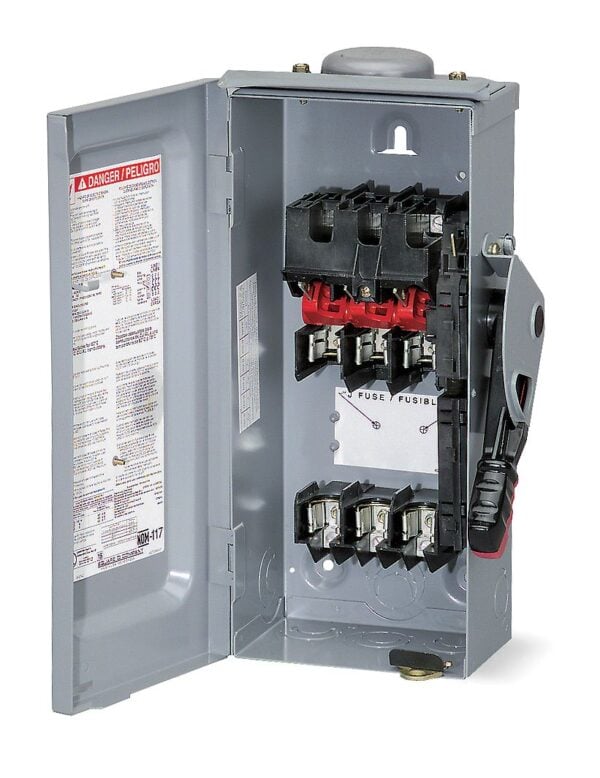

These are the HU362RB & H362RB 600V Disconnects by Schneider Square D. Heavy duty, non fusible, or fuseable, 60A, 600 VAC/DC safety disconnect switches. A great choice when using ground-mounted solar arrays. Place this disconnect at the pole or ground mount for the local array disconnect.

For inverters that do not include a DC disconnect, or when an additional DC disconnect is required, one of these 600 VDC disconnects can be used. Many utilities require an AC disconnect between a grid-tie inverter and the AC load centre, close to the AC service entrance, and with a visible and lockable handle.

HU362RB & H362RB Specifications

Product : Single Throw Safety Switch
Disconnect Type : Non-fusible disconnect
Factory Installed Neutral : None
Network number of phases : 3 phases
Number of Poles : 3
Current Rating : 60 A
Voltage Rating : 600 V AC/DC
Enclosure Rating : NEMA 3R galvannealed steel

Mounting Type : Surface
Electrical Connection : Lugs
Wiring configuration : 3-wire
Wire Size : AWG 14...AWG 3 copper (AWG 12...AWG 3 aluminium)

Download the spec sheet here

Product Attributes

• Dimensions: 1 × 1 × 1 cm
• Weight: 4 kg
• Model: HU362RB (Unfused), H362RB (Fused)

Product Gallery
