PVKit 2.0 Black : Rail-Free Solar Mount System by S-5!

Price: CAD $29.99

SKU: S5-PVKIT-2-BLACK

Product Categories: Mounts, Rail-Free Systems, Roof Attachments, Supply

Product Tags: black, canada, edgegrab, edgegrab canada, midgrab, midgrab canada, pv kit, pv kit 2.0, pvkit, pvkit 2.0, s-5 pv kit, s-5-pv, s-5!, s5, s5 canada, s5 pv kit 2.0, s5 pvkit

Product Page: https://www.modernoutpost.com/product/pvkit-2-0-black-rail-free-solar-module-mount-system-by-s-5/

Product Variants

PVKit 2.0 Black : Rail-Free Solar Mount System by S-5! - EdgeGrab Black ()
PVKit 2.0 Black : Rail-Free Solar Mount System by S-5! - MidGrab Black ()

Product Summary

This is the PVKit 2.0 in popular Black finish. Looks great with today's all-black solar modules. The PVKit system is a rail-free solar module mount by S-5!. It's a direct PV attachment system designed to mount on top of your desired roof attachments. The PVKit works with composite asphalt shingle mounts, metal seam clamp attachments, & corrugated metal mounts. S-5! makes it easy.
Also available in Silver/Mill finish - click here

Product Description

With the S-5-PV Kit and any of the S-5! Mini clamps, installing a leak-free solar assembly is a quick and easy process. The S-5! Mini clamps are a handy way to install everything from the PV modules to the electrical chases.

PVKit 2.0 Black by S5! Features...

Pre-assembled kit saves time and money
Only one tool needed for installation
Bolt head uses standard hex bit tip which is provided

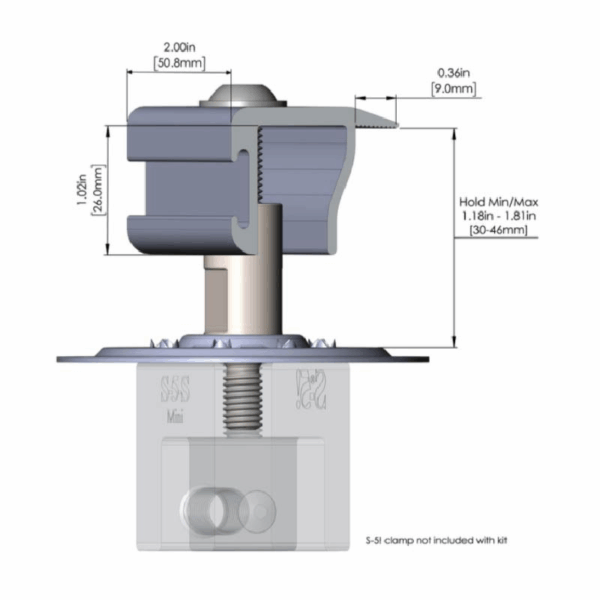

Improved single piece EdgeGrab installs with ease
Low profile bolt head provides a sleek and clean finish
Also available in black by special order only
MidGrab leaves 1" gap between modules, allowing reduction per ASCE7
UL 2703 Listed

PV Disk (included with PVKIT)
The PV Disk is a structural platform between module frame and the roof footing. Bonding teeth abraide anodization creating a continuous electrical path along module columns. Slotted holes at the edge of the disk act as attachment locations for wire management ties.

General Layout Notes

Metal Roofing : Both Standing Seam & Corrugated/Exposed Fastener
The PVKit is designed to clamp to the long edge of your solar modules, therefore it is best suited to landscape solar module array configurations on metal roofing. Landscape allows the latitude to position the PVKit clamps over standing seams or roofing profiles while also keeping them close to the cantilever attachment points on the solar module frame. Remember that you will need two PVKit clamps on each long side of your solar modules.
Portrait orientation of the modules within the array would not provide at least two clamps on the short side of the module frame.

Composite Asphalt Shingle Roofing
The PVKit can be mounted on top of asphalt shingle mounts, but in order to keep your sanity, we recommend using a roof attachment footing that provides some latitude for position adjustment. Your module frames dictate your attachment alignment, and since your chalk line &/or shingle rows may be straight, you need to be able to adjust by millimeters.
The RTMini 2 ¹ is excellent for such purposes.
Another benefit of using an adjustable surface attachment like the RT Mini is that it supports the best practice of NOT targeting rafters. You want to load your roof evenly, and your rafters may wander slightly.
Portrait & landscape module orientations are possible on shingles.
