Description
Voltaic Universal Solar Panel Mounting Bracket. Also referred to as the ‘Medium’ Voltaic mount bracket. Attach a Voltaic solar panel to any vertical or horizontal pole or vertical pipe. Rugged 3mm aluminum is built to withstand high winds and rough conditions.
The bracket is compatible with most Voltaic small solar panels and can be adapted to others.
Does not include u-bolt or pipe clamp.
Voltaic Small Solar Panel Mounting Bracket Specifications
Part# : BK102
Material: 3mm 6061 aluminum
Weight: 0.9lbs [410g]
Angle from horizontal: 40 degrees
.
Voltaic Urethane Solar Panels:
- 2.0W Panel, 3.5W Panel, 6.0W Panel, 9.0W Panel, 9W 18V Panel
- Connect to bracket using the embedded screw and ABS postnut.
Voltaic ETFE Solar Panels:
- 5.5W ETFE Panel, 9W 18V ETFE Panel, and 10.0W ETFE Panel
- Require our ETFE Panel Screw & Washer Set to connect to this bracket.

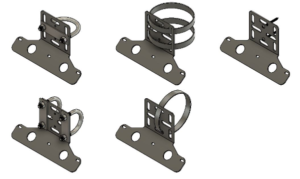

Hardware:
- U-Bolt compatibility for vertical pole: 0.75-2.5″ [16mm-72mm] (will support 1/2″ pipe)
- Pipe clamp compatibility for vertical pole: +2.5″ [+72mm]
- U-Bolt compatibility for horizontal pole: 0.75-2.0″ [16mm-62mm] (will support 1/2″ pipe)
